Description

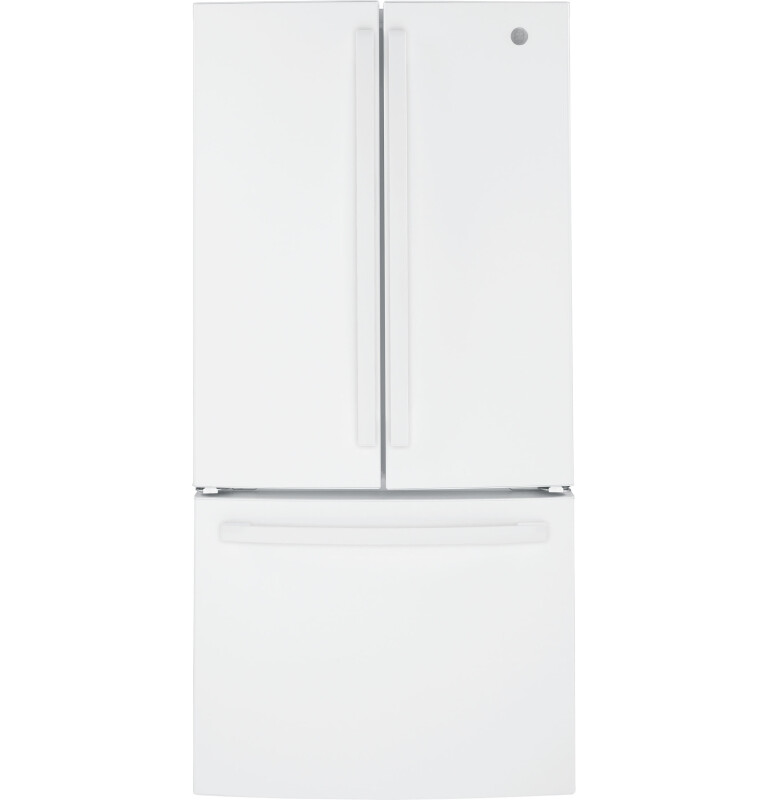

ENERGY STAR 24.7 Cu. Ft. French-Door Refrigerator
Warranty
| Parts | 1 Year |
|---|---|
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Depth | 37.5 in |
|---|---|
| Overall Width | 32.75 in |
| Overall Height | 69.875 in |
| Height to Top of Hinge | 69.875 in |
| Net Weight | 253 lb |
| Back Air Clearances | 2 in |
| Approximate Shipping Weight | 275 lb |
| Depth with Door Open 90° | 47.75 in |
| Width w/Door Open 90 Degrees Incl. Handle | 40.875 in |
| Case Depth Without Door | 30.625 in |
| Top Air Clearances | 1 in |
| Depth Without Handle | 35 in |
| Height to Top of Case | 68.625 in |
| Overall Depth with Handle | 37.5 in |
| Side Air Clearances | 1/8 in |
Other
| Back Air Clearances | 2 in |
|---|---|
| Top Air Clearances | 1 in |
| Side Air Clearances | 0.125 in |
Dimensions & Weight
| Width | 32.75 in. |
|---|---|
| Height | 69.88 in. |
| Length | 37.5 in. |
| Weight | 253 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
|---|---|
| Shipping Width | 37.75 in. |
| Shipping Height | 74.88 in. |
| Shipping Length | 42.5 in. |
| Shipping Weight | 293 lbs. |
| Total of Shipping Weight | 293 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 49.66 ft³ |
|---|---|
| Dimensional Weight | 617.38 lbs. |
| Total of Cubes | 49.66 ft³ |
| Total of Dimensional Weight | 617.38 lbs. |
FEATURES
| Temperature Management Features | Turbo Cool setting |
|---|---|
| Control Type | Upfront Electronic Temperature Controls |
| Icemaker | Factory-Installed |
| Number of Doors | 3 |
| WiFi Connect | Optional (Requires part no. PBX23W00Y1) |
| Performance Features | Easily Removable Door Gaskets |
| Sabbath Mode | Optional |
| Filter Location | Upper right corner |
| Door Alarm | Yes |
| Freezer Storage Baskets | 2 Total |
| Freezer Cabinet Drawer Features | Freezer Drawer |
| Defrost Type | Frost Guard |
| Leveling System | 2 Point Front Adjustable |
| Freezer Features | Interior Lighting - LED |
| Exterior Style | Standard Depth |
| Temperature Display | Internal Digital |
| Fresh Food Features | Interior Lighting - Dual Level LED |
| Configuration | French Door |
| Refrigerant Type | R600a |
| Door Liner | HIPS |
| Dispenser | Internal Water |
| Water Filtration | Water Filter Indicator Light |
| Product Type | French-Door Refrigerator |
| OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
| Fresh Food Cabinet Drawers | 2 Humidity Controlled Drawers |
| Fresh Food Cabinet Shelves | 4 Split Adjustable |
| Fresh Food Door Bins | 6 Adjustable with Gallon Storage |
| Fresh Food Cabinet Shelves | Glass |
| Fresh Food Door Bins | 8 Clear Look |
| Fresh Food Cabinet Drawers | Multi-Level Drawers |
| Control Type | Digital Temperature Display |
| Freezer Features | Ice Bucket |
| Freezer Storage Baskets | 1 Full-Width, Full-Extension Plastic |
| Fresh Food Cabinet Drawers | 1 Full-Width, Adjustable Temperature Drawer |
| Fresh Food Cabinet Shelves | 5 Total |
| Fresh Food Cabinet Shelves | 1 Quick Space Shelf |
| Fresh Food Door Bins | 2 Fixed |
| Product Type | Bottom Freezer Refrigerator |
| Temperature Management Features | Multiflow Air System with Electronic Sensors |
| Water Filtration | GE Water Filtration (XWFE Filter) |
| Exterior Style | Free-Standing |
CAPACITY
| Fresh Food Capacity | 17.43 cu ft |
|---|---|
| Freezer Capacity | 7.26 cu ft |
| Total Capacity (cubic feet) | 24.70 cu ft |
APPEARANCE
| Case Color | White |
|---|---|
| Exterior Design | Contoured Crown Doors |
| Door Stops | Yes |
| Textured Steel Case | Case Only- Color Matched |
| Handle Color | White |
| Door Swing | French Door |
| Handle Design | Designer Style |
| Door Appearance | Gloss |
| Color Appearance | White |
POWER / RATINGS
| Energy Consumption (kWh/year) | 609 |
|---|---|
| Electrical Requirements | 120V |
| Hertz | 60 |
| Watts | 294 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
WARRANTY
| Warranty Notes | See written warranty for full details |
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET
| Cabinet Liner | ABS |
|---|
- 33" widthA compact design fits in smaller spaces, yet still offers the large storage capacity of a French-door refrigerator
- Internal water dispenserDelivers filtered water with one touch
- Factory-installed icemaker with water filtration systemRefrigerator comes ready to automatically create filtered ice
- LED lightingFind exactly what you’ve been looking for under crisp, clear lighting
- Two humidity-controlled drawers and full-width drawerCreate the right environment for keeping fruits and vegetables fresh, while easily storing wider items like a party platter or a sheet cake
- Two-level freezer storage basketsBaskets allow easy access to frozen foods
- Turbo Cool and Turbo Freeze settingsAn extra boost of cold air restores interior to set temperature for optimum food freshness
- Internal controls with actual-temperature setting displayEliminate the guesswork of temperature setting with actual degrees displayed digitally
- Quick Space shelfQuickly slides out of the way to make room for tall items
- Advanced water filtrationThe included refrigerator water filter reduces 50+ impurities including lead, chlorine, microplastics, and PFOA/PFOS; providing clean, safe drinking water and ice (replacement water filters sold separately - check refrigerator filter compartment for compatible model)
- Spill-proof shelvesA variety of shelf configurations provide additional options for food storage
- Gallon door storageDeep bins handle large containers in the door and free up valuable shelf space
- Door alarmEnjoy peace of mind knowing the refrigerator door is never left open
- Enhanced Shabbos ModeThe Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)
