Description

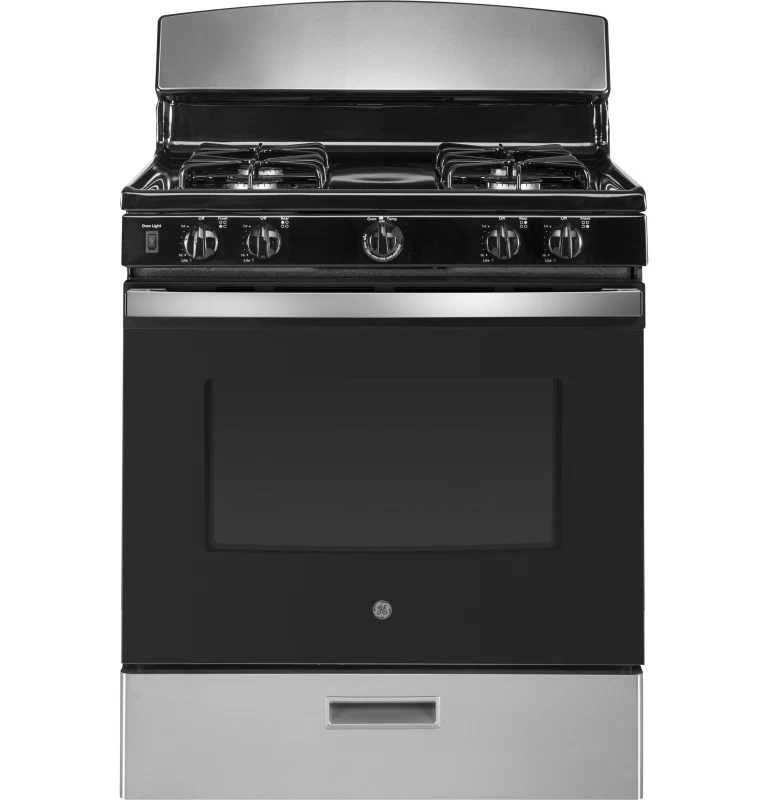

Large, clear window makes checking food easy.Delicate foods don’t burn with low, even heat.46 1/4 H x 30 W x 28 3/4 D
Warranty
| Parts | 1 Year |
|---|---|
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
|---|---|
| Overall Depth | 28.75 in |
| Overall Height | 46.25 in |
| Net Weight | 149 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Depth with Door Open | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 171 lb |
| Height to Cooking Surface (in.) | 36 - 36.25 |
FEATURES
| Configuration | Range with Broiler Drawer |
|---|---|
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU |
| Interior Oven Light | 1 Incandescent |
| Fuel Type | Natural Gas |
| OU Certified | No |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Heavy Steel |
| Sabbath Mode | Yes |
| Burner - Right Front | 13,000 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 9,500 BTU |
| Control Location | Front |
| Drawer Type | Broiler |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Control Type | Knob |
| Cooking Technology | Traditional |
| Control Type | Rotary knobs |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Black |
APPEARANCE
| Cooktop Burner Grate Color | Black Gloss |
|---|---|
| Oven Door Features | Big View Oven Window |
| Handle | Designer Style |
| Control Knobs | Gloss Black |
| Handle Color | Stainless Steel |
| Color Appearance | Stainless Steel |
ACCESSORIES
| LP Conversion Kit | Included |
|---|
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 13.0; (2) 9.5; (1) 5.0 |
|---|---|
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake |
| Electrical Requirements | 120V |
| Hertz | 60 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
|---|---|
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
|---|
Dimensions & Weight
| Width | 30 in. |
|---|---|
| Height | 46.25 in. |
| Length | 28.75 in. |
| Weight | 149 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
|---|---|
| Shipping Width | 35 in. |
| Shipping Height | 51.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 189 lbs. |
| Total of Shipping Weight | 189 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.08 ft³ |
|---|---|
| Dimensional Weight | 286.98 lbs. |
| Total of Cubes | 23.08 ft³ |
| Total of Dimensional Weight | 286.98 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 4.80 cu ft |
|---|
- 13,000 BTU burnerDelivers a wide range of heat output ideal for most cooking requirements
- Big view windowLarge, clear window makes checking food easy
- Sealed cooktop burnersContains spills and make cleaning quick and easy
- Black gloss steel gratesEasily wipe away messes from a smooth, glossy surface
- 4.8 cu. ft. oven capacityEnough room to cook an entire meal at once
- Precise Simmer burnerDelicate foods don’t burn with low, even heat
