Number of Boxes, Shipping Dimensions, & Shipping Weight
Number of Boxes
1
Shipping Width
41 in.
Shipping Height
7 in.
Shipping Length
26 in.
Shipping Weight
75 lbs.
Total of Shipping Weight
75 lbs.
Source
Calculation
Cubic Feet Measurement & Dimensional Weight
Cubic Feet Measurement
0.88 ft³
Dimensional Weight
9.11 lbs.
Total of Cubes
0.88 ft³
Total of Dimensional Weight
9.11 lbs.
Product Details
Sabbath Mode
No

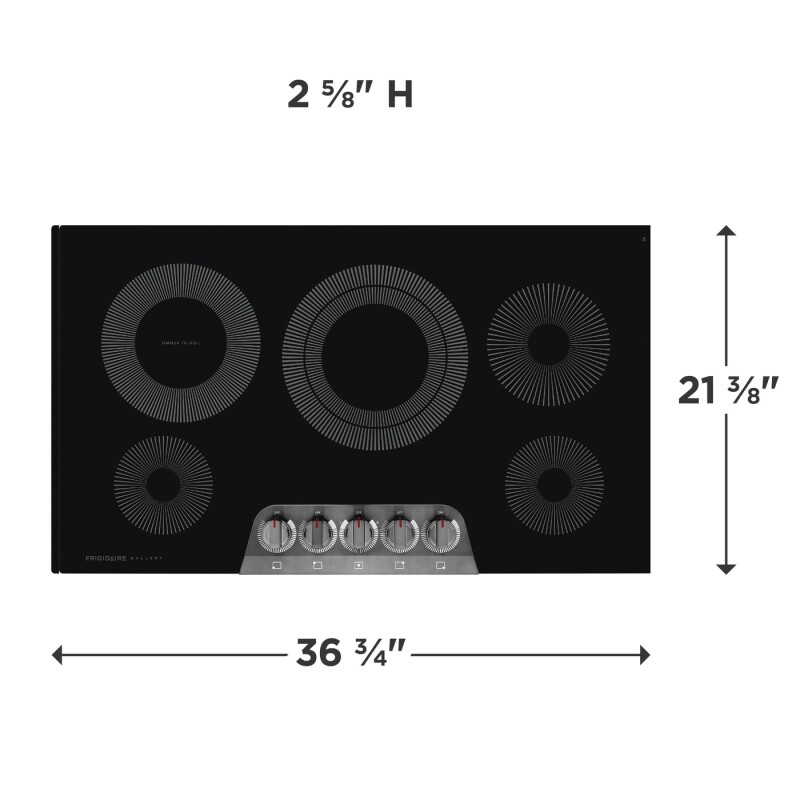

Height
2 5/8"
Width
36 3/4"
Depth
21 3/8"
Minimum Cutout Width
33 7/8"
Minimum Cutout Depth
19 1/8"
Maximum Cutout Width
36 1/8"
Maximum Cutout Depth
20 1/2"
ADA Compliant
Yes
CSA Listed
Yes
UL Listed
Yes
Cooking Surface Type
Smooth
Hot-Surface Indicator Light
Yes
Right Front Element Burner Size
6"
Right Rear Element Burner Size
7"
Left Front Element Burner Size
6"
Left Rear Element Burner Size
9"
Center Rear Element Burner Size (Small)
9"
Center Rear Element Burner Size (Large)
12"
Right Front Element Burner
1200 Watts
Right Rear Element Burner
1800 Watts
Left Front Element Burner
1200 Watts
Left Rear Element Burner
3200 Watts
Center Rear Element Burner (Small)
1800 Watts
Center Rear Element Burner (Large)
3000 Watts
Standard Width
36"
Cutout Height
5"
Amps @ 240 Volts
43.3 Amps
Connected Load @ 240V
10.4 kW
Minimum Circuit Required
50 Amps
Voltage Rating
240 V
Frigidaire Fit Promise
Yes
Product Weight
35 lbs
Prop 65 Label
Yes
Warranty - Labor
1 Year
Warranty - Parts
1 Year
AB-1200
Information available at frigidaire.com/en/ab1200
Installed Over a Wall Oven
Yes
Power Supply Connection Location
Right Center
Display Type
Mechanical
Easy-to-Clean Glass CooktopWipe away spills more easily with the smooth ceramic glass cooktop.
EvenTemp® ElementHeat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.
Five Element CooktopDesigned to meet all of your cooking needs with a powerful 3,200 Watt EvenTemp® Element, Dual Expandable Element, and convenient Keep Warm Zone.
Backlit LED KnobsLights up when the burner is turned on.
Frigidaire® Fit PromiseWe promise that your new 36" Frigidaire radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
SpaceWise® Dual Expandable ElementOur convenient 2-in-1 element expands from 9" for smaller pots to 12" for larger cookware, providing more cooktop flexibility.
Cooktop Keep Warm ZoneKeep food warm until everything - and everyone - is ready.
Easy to Use Front ControlsLocated on the front of the cooktop so you to adjust the temperature without reaching over hot items.
Installation over Wall Oven ApprovedCooktops are approved for installation above any of our Frigidaire electric wall ovens.
