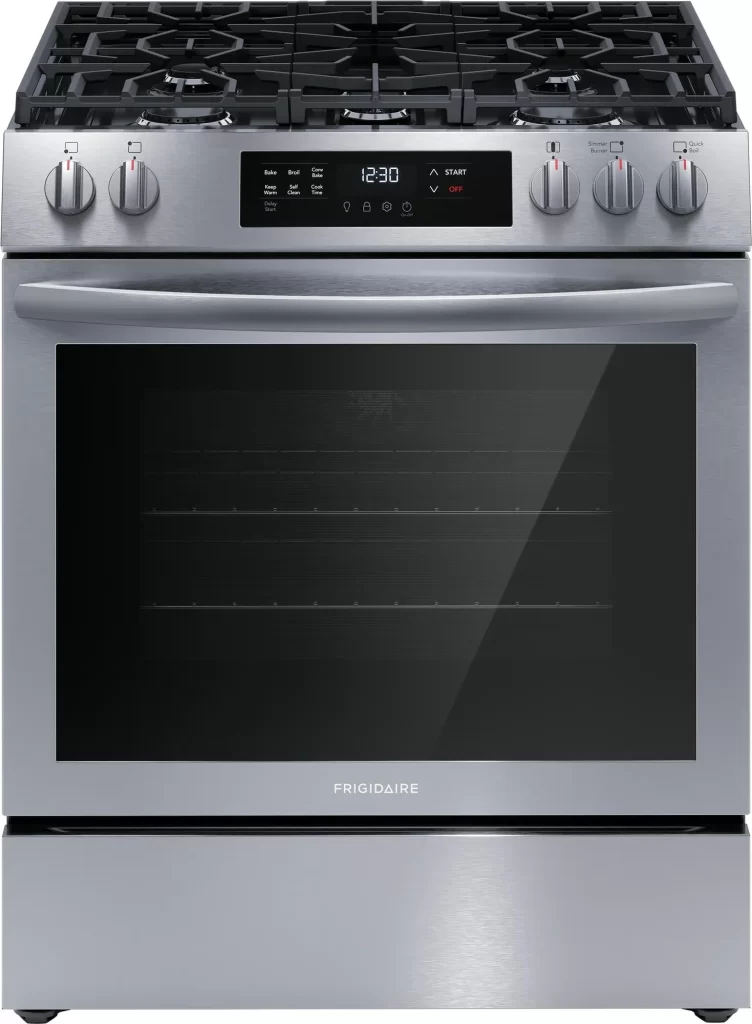

The Frigidaire 30” Front Control Freestanding Gas Range with Convection Bake delivers faster, more even baking results. In addition to faster baking, you can experience faster boil times and more powerful cooking with the 18,000 BTU Quick Boil burner. Plus, our flexible five burner cooktop was designed to fit all your cooking needs.
| Frigidaire Fit Promise | Yes |
|---|---|
| Warranty - Labor | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Oven Capacity | 5.1 Cu. Ft. |
| Width | 30 in. |
|---|---|
| Height | 35.63 in. |
| Length | 26 in. |
| Weight | 180 lbs. |
| Minimum Height | 35 5/8" |
| Maximum Height | 36 3/8" |
| Depth With Door 90° Open | 47 1/4" |
| Depth With Handle | 28 1/2" |
| Oven Interior Height | 17 5/8" |
| Oven Interior Width | 25 3/16" |
| Oven Interior Depth | 19 7/8" |
| Number of Boxes | 1 |
|---|---|
| Shipping Width | 35 in. |
| Shipping Height | 40.63 in. |
| Shipping Length | 31 in. |
| Shipping Weight | 220 lbs. |
| Total of Shipping Weight | 220 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 16.08 ft³ |
|---|---|
| Dimensional Weight | 199.91 lbs. |
| Total of Cubes | 16.08 ft³ |
| Total of Dimensional Weight | 199.91 lbs. |
| Height | 35 5/8" |
|---|---|
| Width | 30" |
| Depth | 28 1/2" |
| Depth | 26" |
| Depth With Door 90° Open | 47 1/4" |
| Bake | Yes |
| Bake Time | Yes |
| Broil | Yes |
| Child Lock | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Convection Roast | Yes |
| Cook Time | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Self Clean | Yes |
| Start | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| Up / Down Arrow | Yes |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Delayed Bake | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Sealed Burners | Yes |
| Total Number of Burners | 5 |
| Right Front Element Burner | 18000 BTU |
| Right Rear Element Burner | 5000 BTU |
| Left Front Element Burner | 14000 BTU |
| Left Rear Element Burner | 10000 BTU |
| Center Rear Element Burner | 10000 BTU |
| Minimum Height | 35 5/8" |
| Maximum Height | 36 3/8" |
| Standard Width | 30" |
| Depth With Handle | 28 1/2" |
| Oven Interior Height | 17 5/8" |
| Oven Interior Width | 25 3/16" |
| Oven Interior Depth | 19 7/8" |
| Oven Capacity | 5.1 Cu. Ft. |
| Drawer Type | Storage |
| Minimum Circuit Required | 12 Amps |
| Voltage Rating | 120 V |
| Adjustable Leveling Legs | Yes |
| Frigidaire Fit Promise | Yes |
| Product Weight | 180 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Bake Element | 17000 BTU |
| Broil Element | 1400 Watts |
| Cleaning System | Yes |
| Convection | Yes |
| Convection Type | Fan |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Display Interface Color | White |
| Display Type | Capacitive Touch |
