Number of Boxes, Shipping Dimensions, & Shipping Weight
Number of Boxes
1
Shipping Width
41 in.
Shipping Height
7 in.
Shipping Length
26 in.
Shipping Weight
91 lbs.
Total of Shipping Weight
91 lbs.
Source
Calculation
Cubic Feet Measurement & Dimensional Weight
Cubic Feet Measurement
0.88 ft³
Dimensional Weight
9.11 lbs.
Total of Cubes
0.88 ft³
Total of Dimensional Weight
9.11 lbs.
Product Details

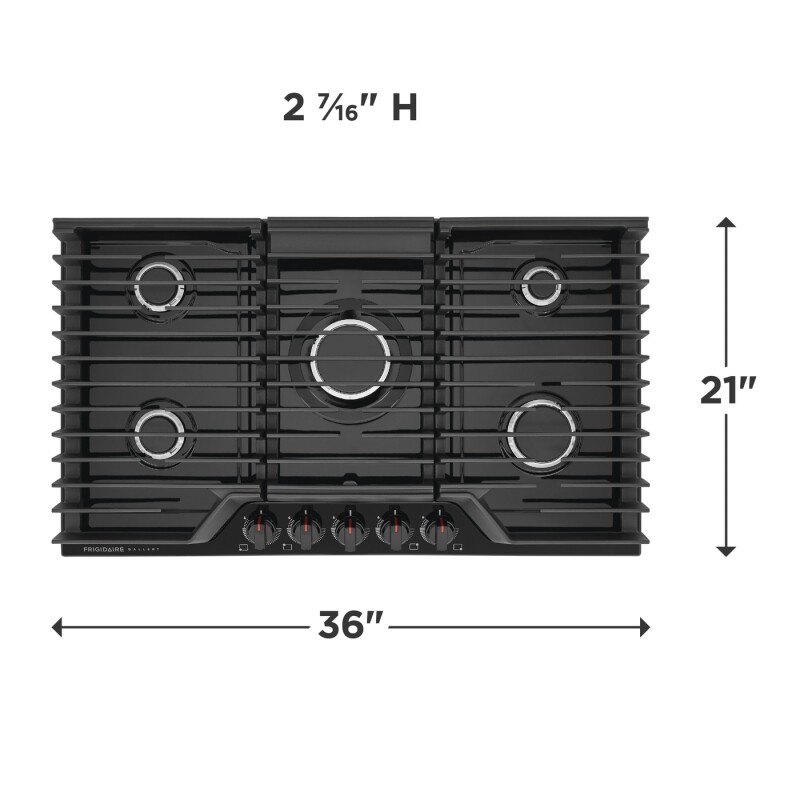

Height
2 7/16"
Width
36"
Depth
21"
Minimum Cutout Width
33 7/8"
Minimum Cutout Depth
19"
Maximum Cutout Width
35 5/8"
Maximum Cutout Depth
20"
ADA Compliant
Yes
CSA Listed
Yes
UL Listed
Yes
Cooking Surface Type
Gas
Grate Material
Cast Iron
Grate Quantity
3
Grate Style
Continuous
Total Number of Burners
5
Right Front Element Burner
12000 BTU
Right Rear Element Burner
5000 BTU
Left Front Element Burner
9500 BTU
Left Rear Element Burner
9500 BTU
Center Front Element Burner
18000 BTU
Standard Width
36"
Cutout Height
7 1/2"
Minimum Circuit Required
5 Amps
Voltage Rating
120 V
Gas Supply Connection Location
Top Right
Installed Over a Wall Oven
Yes
LP Conversion Kit Included
Yes
Power Cord Included
Yes
Power Supply Connection Location
Right Center
Backlit Knobs
Yes
Frigidaire Fit Promise
Yes
Product Weight
51 lbs
Prop 65 Label
Yes
Warranty - Labor
1 Year
Warranty - Parts
1 Year
Quick BoilExperience faster boil times and more powerful cooking with the 18,000 BTU burner.
Backlit LED KnobsLights up when the cooktop is turned on.
Five Burner CooktopThis cooktop features five burners including a 5,000-BTU simmer burner and a 18,000-BTU Quick Boil Burner that gets meals on the table, faster.
Low Simmer BurnerLow simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Dishwasher Safe Burner CapsCleaning your cooktop is easier with removable, dishwasher safe burner caps.
Continuous Edge-to-Edge GratesMoving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Spill Safe® CooktopClean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
Frigidaire® Fit PromiseWe promise that your new 36" Frigidaire Gallery gas cooktop will fit your existing cut-out, or we will reimburse you up to one hundred dollars for professionally modifying the countertop.
Installation over Wall Oven ApprovedCooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
