Number of Boxes, Shipping Dimensions, & Shipping Weight
Number of Boxes
1
Shipping Width
41 in.
Shipping Height
7 in.
Shipping Length
26 in.
Shipping Weight
87 lbs.
Total of Shipping Weight
87 lbs.
Source
Calculation
Cubic Feet Measurement & Dimensional Weight
Cubic Feet Measurement
0.88 ft³
Dimensional Weight
9.11 lbs.
Total of Cubes
0.88 ft³
Total of Dimensional Weight
9.11 lbs.
Product Details
ENERGY STAR Certified
Yes
Height
2 7/8"
Width
36 3/4"
Depth
21 3/8"
Minimum Cutout Width
33 7/8"
Minimum Cutout Depth
19 1/8"
Maximum Cutout Width
36 1/8"
Maximum Cutout Depth
20 1/2"
ADA Compliant
Yes
cUL Listed
Yes
RoHS
Yes
UL Listed
Yes
Right Front Element Burner Size
8"
Right Rear Element Burner Size
6"
Left Front Element Burner Size
7"
Left Rear Element Burner Size
7"
Center Element Burner Size
8"
Right Front Element Burner
2,300 / 3,600 Watts (Boost)
Right Rear Element Burner
1,450 / 2,500 Watts (Boost)
Left Front Element Burner
1,800 / 2,600 Watts (Boost)
Left Rear Element Burner
1,800 / 2,600 Watts (Boost)
Center Element Burner
2,300 / 3,600 Watts (Boost)
Standard Width
36"
Cutout Height
3 5/8"
Amps @ 240 Volts
40 Amps
Minimum Circuit Required
40 Amps
Frigidaire Fit Promise
Yes
Product Weight
47 lbs
Prop 65 Label
Yes
Warranty - Labor
1 Year
Warranty - Parts
1 Year
AB-1200
Information available at frigidaire.com/en/ab1200
Display Interface Color
Red
Display Type
Capacitive Touch

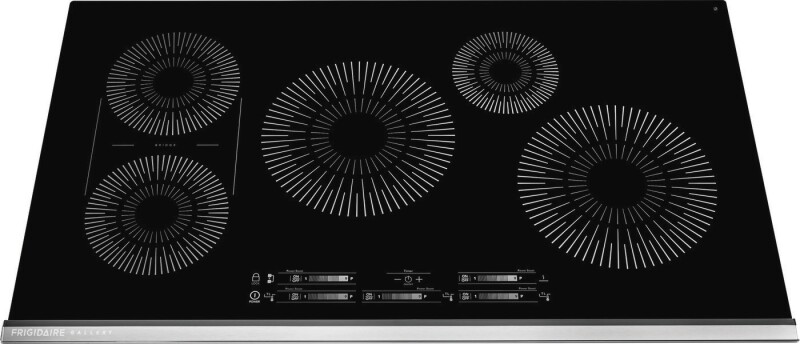

Safer cooktop surfaceInduction only heats the pan and the food in it, so the area around the pan stays cooler.
More Efficient Way to CookUse less energy while you cook with energy-efficient induction technology which heats the pan directly so less heat loss in the cooking process.
Easy-to-Clean CooktopUnlike traditional electric and gas cooktops, Induction only heats the pan and the food in it, so the area around the pan stays cooler, allowing you to clean up spills and splatters while you cook.
Faster Boil TimesWith induction, heat transfers directly to the cookware bypassing the cooktop surface, making induction incredibly fast.
Consistent temperature with TempLock™Sensors in the cooktop automatically adjust the power level to maintain a consistent temperature the entire time you cook - it's like cruise control for your cooktop.
Convenient Bridge ElementConnects two elements to allow for simultaneous control, perfect for a griddle pan.
Frigidaire® Fit PromiseWe promise that your new 36" Frigidaire induction cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
Auto Pot DetectionGet to mealtime easier with auto pot detection that lights up cooktop controls for the element a pan is placed on when the cooktop is on.
Compatible with most cookwareMost stainless steel and cast iron cookware is compatible with induction elements. Rule of thumb: if a magnet sticks to the bottom of the cookware, it’s induction-compatible.
Installation over Wall Oven ApprovedCooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
