Whirlpool

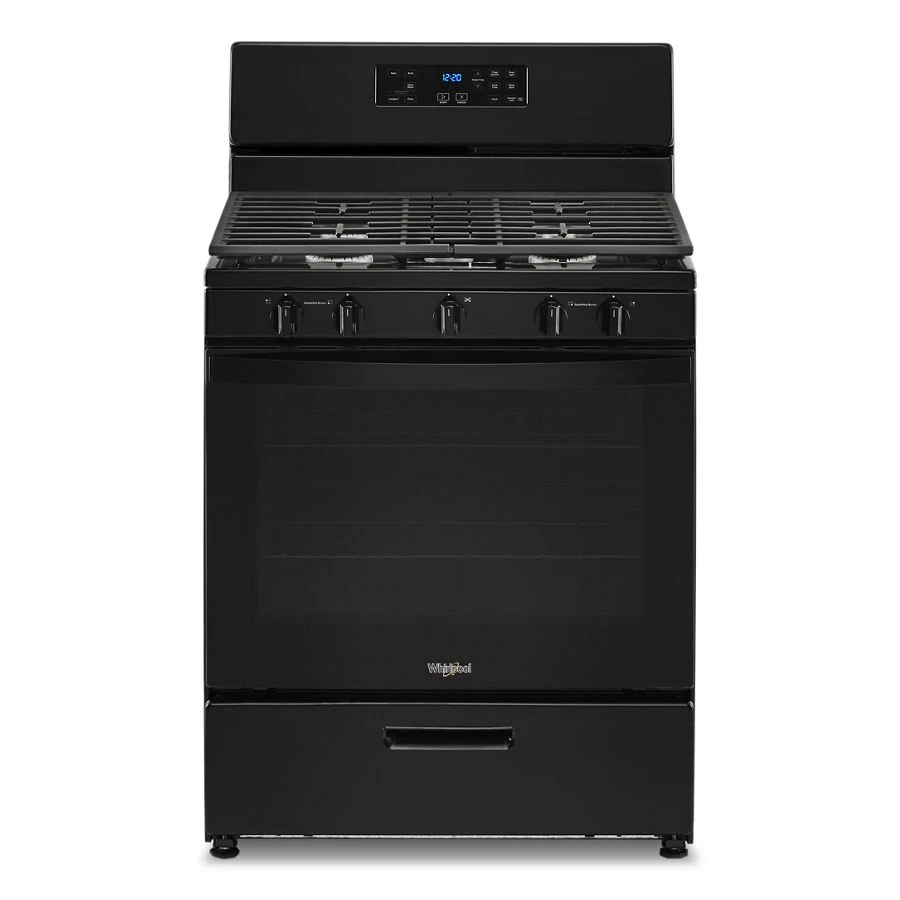

5.1 Cu. Ft. Freestanding Gas Range with Edge to Edge Cooktop

Name: 5.1 Cu. Ft. Freestanding Gas Range with Edge to Edge Cooktop
SKU: WFG505M0MB
Availability: InStock

$828.00

Special Order — ships in ~2–3 weeks

SKU: WFG505M0MB Categories: Cooking, Ranges

Description

Cook your family’s favorite foods on a freestanding gas range that has two high btu gas burners to sear and boil quickly, and an edge to edge cooktop with cast-iron grates that are dishwasher-safe. Get the flexibility to cook a wide variety of meals with help from Frozen Bake™ Technology, the built-in Broiler Drawer and more cooking modes.

Other

Common Size	30 in
Capacity	5.1 cu. ft.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement	21.75 ft³
Dimensional Weight	270.38 lbs.
Total of Cubes	21.75 ft³
Total of Dimensional Weight	270.38 lbs.

Cooktop Details

Auto Re-ignition	No
Cooktop Control Knob Type	Plastic
Cooktop Control Location	Front
Cooktop Control Type	Knobs
Cooktop Surface Material	Porcelain Coated Steel
Griddle Included	Optional Accessory
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No
Ignition Type	Electronic
Cooktop Control Knob Color	Black
Cooktop Surface Color	Black

Exterior Details

Door Type	Glass
Oven Control Location	Backguard
Oven Control Type	Electronic Touch
Oven Window Size	Extra Large
Handle Color	Black
Handle Material	Metal
Handle Type	Reach Through Handle

Element/Burner Details

Center Front Element-Burner Type	Oval Burner
Cooktop Element Style	Sealed Burners
Left Front Element-Burner Type	SpeedHeat™
Left Rear Element-Burner Type	Standard
Number of Cooking Element-Burners	5
Right Front Element-Burner Type	SpeedHeat™
Right Rear Element-Burner Type	Simmer
Number of Grates	2
Center Front Element-Burner Power	10,000 BTU
Left Front Element-Burner Power	15,000 BTU
Left Rear Element-Burner Power	9,500 BTU
Right Front Element-Burner Power	15,000 BTU
Right Rear Element-Burner Power	5,000 BTU

Details

Cooktop Configuration	All Burners
Fuel Type	Gas
LP Convertible	Yes - Kit Included
Power Outage Compatible	Yes
Range Type	Freestanding
Natural Gas Convertible	Yes
Oven Selections	Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Frozen Bake, Keep Warm/Warm Hold, Sabbath Mode, Timer

Controls

Display Color	Blue
Electronic Display Type	LED

Electrical

Power Cord Included	Yes
Amps	15
Hz	60
Volts	120

Certifications

ADA Compliant	No
UL	Yes

Dimensions & Weight

Width	29.88 in.
Height	46.25 in.
Length	27.2 in.
Weight	161 lbs.
Cutout Depth	24 in
Cutout Height	36 in
Cutout Width	30-1/8 in
Depth Closed Excluding Handles	22-9/10 in
Gross Weight	161 lbs
Minimum Height	36 in
Net Weight	147 lbs
Oven Interior Depth	19 in
Oven Interior Height	18-3/8 in
Oven Interior Width	25 in
Cutout Width	30.125 in
Depth Closed Excluding Handles	22.9 in
Oven Interior Height	18.375 in

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes	1
Shipping Width	32 in.
Shipping Height	48 in.
Shipping Length	32.2 in.
Shipping Weight	201 lbs.
Total of Shipping Weight	201 lbs.
Source	Calculation

Dimensions

gross weight	136

Oven Cavity Details

Automatic Convection Conversion Temperature Adjust	No
Broiler Location	Drawer
Door Removable	Yes
Hidden Bake Element	Yes
Interior Color	Grey
Number of Oven Lights	1
Number of Oven Racks	2
Number of Rack Guides	5
Oven Cleaning Type	Manual Clean
Oven Cooking System	Thermal
Oven Light Switch Location	Oven Control
Oven Light Type	Incandescent
Oven Rack Type	Standard
Bake Element Power	16,500 BTU
Broiler Element Power	16,500 BTU

Grate Details

Grate Details	Continuous, Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates

Capacity

Volume	24.889 Cu.Ft.

Keep Warm settingKeep dishes from getting cold with a setting that delivers low heat to the oven, so your meal is ready when you are.
Two SpeedHeat™ BurnersGet dinner to the table fast with two SpeedHeat™ Burners that generate the high heat needed to sear and boil quickly
Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza and lasagna in fewer steps with preprogrammed settings.
Dishwasher-Safe Cast-Iron GratesWash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
Edge-to-Edge Cast-Iron GratesGet more space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.
Broiler DrawerUse the high heat of the Broiler Drawer to quickly melt or brown your favorite dishes in a separate cavity while you cook another dish in the main oven.
Optional GriddleMake pancakes, grill vegetables or sear steaks with the Optional Griddle that lets you optimize your cooktop space for breakfast, lunch and dinner. Optional Griddle sold separately.
Center Oval BurnerEasily fit griddles and long cookware on this fifth burner, designed to effectively heat large surfaces.
5.1 Cu. Ft. CapacityEasily cook large meals with a 5.1 Cu. Ft. Capacity oven that includes two racks and a separate Broiler Drawer.
Control Lock ModeDisable the control panel to avoid unintended use and easily clean the controls.
Hidden Bake ElementA Hidden Bake Element under the floor of the oven creates a smooth surface inside the oven that’s easy to clean.
Delay StartProgram the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
Large Oven WindowKeep an eye on your meal and track cooking progress through the Large Oven Window.
Porcelain Enamel CooktopClean up easily with a smooth, porcelain-enamel surface that makes it simple to wipe up cooktop spills.
Sabbath ModeUse Sabbath Mode to keep the oven on the Bake setting at a set temperature which allows for cooking or warming food until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.
Star-K Certified
Hidden bake elementThe hidden bake element is sealed under the oven floor to protect it from spills and drips.
