Number of Boxes, Shipping Dimensions, & Shipping Weight
Number of Boxes
1
Shipping Width
35 in.
Shipping Height
51 in.
Shipping Length
31 in.
Shipping Weight
230 lbs.
Total of Shipping Weight
230 lbs.
Source
Calculation
Cubic Feet Measurement & Dimensional Weight
Cubic Feet Measurement
20.76 ft³
Dimensional Weight
258.13 lbs.
Total of Cubes
20.76 ft³
Total of Dimensional Weight
258.13 lbs.
Product Details
Sabbath Mode
Yes

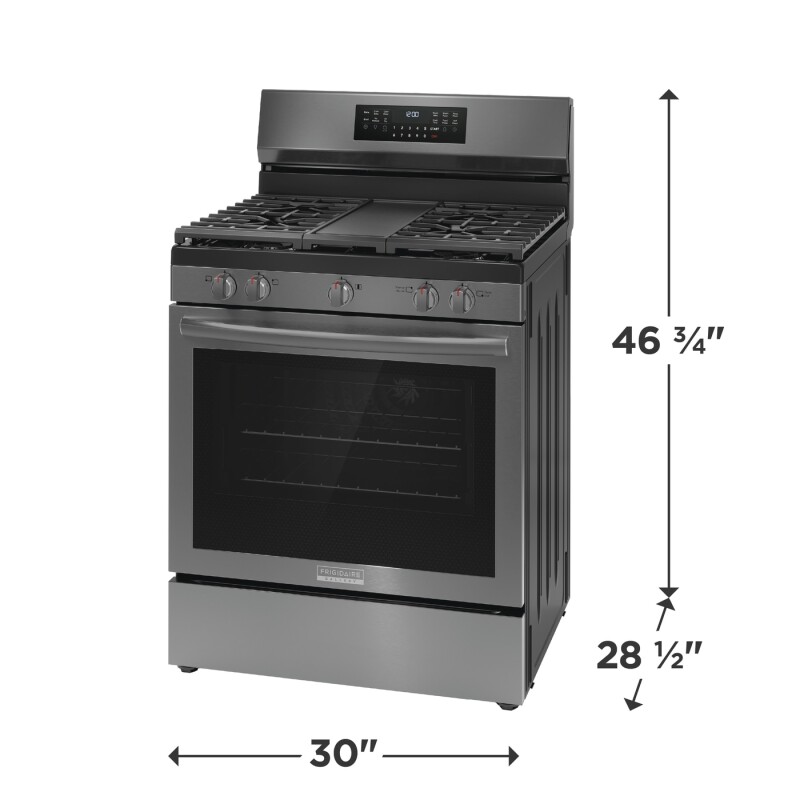

Height
46 3/4"
Width
30"
Depth
28 1/2"
Depth
26"
Depth With Door 90° Open
47 5/16"
Control Lock
Yes
Air Fry
Yes
Air Sous Vide
Yes
Bake
Yes
Bake Time
Yes
Broil
Yes
Clock
Yes
Convection Bake
Yes
Convection Roast
Yes
Cook Time
Yes
Delay Clean
Yes
Delay Start
Yes
Door Lock
Yes
Keep Warm
Yes
Kitchen Timer
Yes
Light
Yes
Lockout
Yes
No Preheat
Yes
Numerical Keypad
Yes
Off
Yes
Oven Light
Yes
Probe
Yes
Self Clean
Yes
Set Clock
Yes
Slow Cook
Yes
Start
Yes
Steam Bake
Yes
Steam Clean
Yes
Steam Roast
Yes
Temperature Display
Yes
Timer On / Off
Yes
User Preferences
Yes
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature
Yes
Delayed Bake
Yes
Program Fahrenheit or Celsius
Yes
Silent Control Panel
Yes
CSA Listed
Yes
Cooking Surface Type
Gas
Grate Material
Cast Iron
Grate Quantity
2
Grate Style
Individual
Integrated Griddle Included
Yes
Optional Center Grate
5304535284
Sealed Burners
Yes
Total Number of Burners
5
Right Front Element Burner
18000 BTU
Right Rear Element Burner
5000 BTU
Left Front Element Burner
14000 BTU
Left Rear Element Burner
10000 BTU
Center Rear Element Burner
10000 BTU
Minimum Height
46 3/4"
Maximum Height
47 3/4"
Standard Width
30"
Depth With Handle
28 1/2"
Oven Interior Height
17 5/8"
Oven Interior Width
25 3/16"
Oven Interior Depth
19 7/8"
Oven Capacity
5.1 Cu. Ft.
Drawer Handle Style
Integrated
Drawer Type
Storage
Minimum Circuit Required
12 Amps
Voltage Rating
120 V
Adjustable Leveling Legs
Yes
Power Cord Included
Yes
Product Weight
190 lbs
Prop 65 Label
Yes
Warranty - Labor
1 Year
Warranty - Parts
1 Year
AB-1200
Information available at frigidaire.com/en/ab1200
Bake Element
18000 BTU
Broil Element
1400 Watts
Broil Element Pass
6
Broil System
Yes
Cleaning System
Yes
Convection
Yes
Convection Element
1000 Watts
Convection Type
Total
Number of Convection Fans
1
Number of Rack Positions
6
Oven Interior Color
Midnight Black
Oven Light Quantity
1
Oven Light Type
Halogen
Oven Light Watts
40 Watts
Rack Position Type
Embossed
Rack Type 1
Flat
Rack Type 1 Quantity
2
Display Interface Color
White
Exterior Finish
Smudge-Proof® Stainless Steel
Air FryMake healthier and delicious meals for your entire family - right in your oven.
Slow CookWith Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
Total Convection SystemGives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide and more!
No PreheatEliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
Five Burner Cooktop + Integrated GriddleDesigned to meet all of your cooking needs with a powerful 18,000 BTU Quick Boil Burner and a center oval burner with an integrated cast iron griddle.
Temperature ProbeMonitors and alerts when the desired finished cooking temperature has been reached.
Steam BakeWith Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
Self and Steam Clean CyclesEnjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
Steam RoastSteam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
Extra Wide Store-More™ Storage DrawerRedesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
Air Sous VideUses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
Proudly Assembled in the USA
Smudge-Proof® Stainless SteelResists fingerprints and cleans easily
